Product: Cross Female Hex (HCF)
End Conn 1 Thread type NPT Female End Conn 2 Thread type NPT Female End Conn 3 Thread type NPT Female End Conn 4 Thread type NPT Female Model No. For MOC: SS316
1/8 1/8 1/8 1/8 SS-HCF-2F
1/4 1/4 1/4 1/4 SS-HCF-4F
3/8 3/8 3/8 3/8 SS-HCF-6F
1/2 1/2 1/2 1/2 SS-HCF-8F
3/4 3/4 3/4 3/4 SS-HCF-12F
For following Material Grade(MOC) Replace First
Two Letters of Model No. with following
SS316L SSL
SS304 S4
SS304L S4L
Brass B
Alloy 400 ML
Alloy 600 INC
Alloy C276 HC
PTFE T
Carbon Steel CS

CROSS FEMALE HEX (HCF)

  • Home
  • Cross Female Hex (HCF)
CROSS FEMALE HEX (HCF)

Features

Suitable for High Pressure Gases, Liquids & Vacuum Designed for easy handling & suitable for High pressure applications

When Used

It is used for achieving high pressure leakproof cross joint between Four Male threaded open ports.

Technical Specification

End Connections FPT x FPT x FPT x FPT
FEMALE PIPE THREAD SIZE (FPT) 1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) Reducing cross in all combinations available. Cross with Male Female threads upon request
TEST PRESSURE Up to 10000 psi
MOC SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc
Model No Designator (*) MOC*-HCF-FPT1*-FPT2*-FPT3*-FPT4*

Download Model Chart

Download Now

Inquiry For CROSS FEMALE HEX (HCF) Product


Description

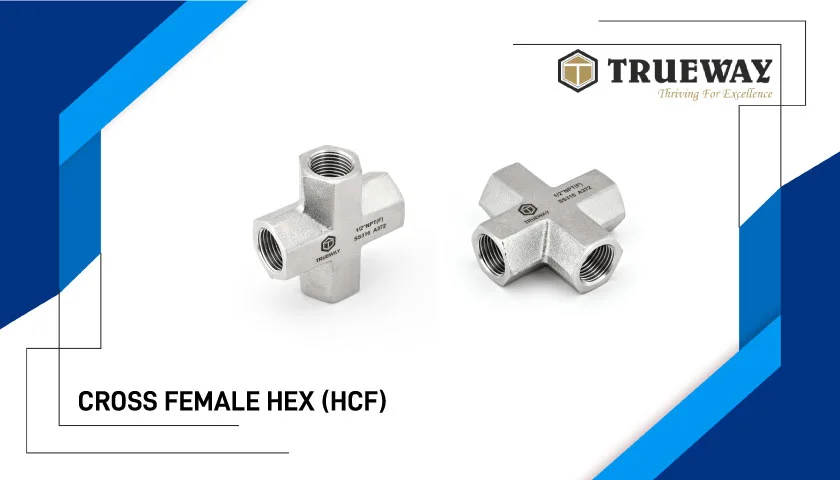

TRUEWAY Cross Female Hex is a four way Connector with Female Pipe Threads on all four Sides of the joint. It is a precision engineered component, used for achieving high pressure leakproof cross joint between Four Male threaded open ports.

Industries

Instrumentation

Chemicals

Oil & Gas

Hydraulics

Power

Steel

Fertilizers

Petrochemicals

Pharmaceuticals
